DS100
Fast PTC heating system
Separated switch for on/off and touch switch for
temperature adjustment operation
Instructions
- Plug in the Power:
Plug in the power cord. The buzzer will beep twice. - Power On:
Press the power switch for 1 second to turn on the device. A single beep will accompany the startup. The blue LED power indicator light will remain on continuously. The device starts working, and the touch control indicator light for the settings will blink at a frequency of 2 times per second. The default temperature upon startup is 140℃, indicated by the red LED light remaining on continuously. - Adjust Settings:
Touch the power switch once to change the setting by one increment. The corresponding red LED indicator light for the settings will remain on continuously. Settings can cycle between 140-160-180-200-220-140-160-180-200-220℃. - Temperature Adjustment:
When adjusting the settings up or down, the blue LED indicator light for the settings will blink. Once the temperature reaches the set setting, the light will remain on continuously, accompanied by a single beep from the buzzer to indicate locking. - Power Off:
Press the power switch for 1 second again while the device is on. All lights will turn off, and the buzzer will beep twice. The device will stop working. - Timer:
The device as a timer set for 60±5 minutes.
Specifications
- Power: 100~240V/50-60Hz
- Heating Element:MCH
- Temperature: 140-160-180-200-220℃

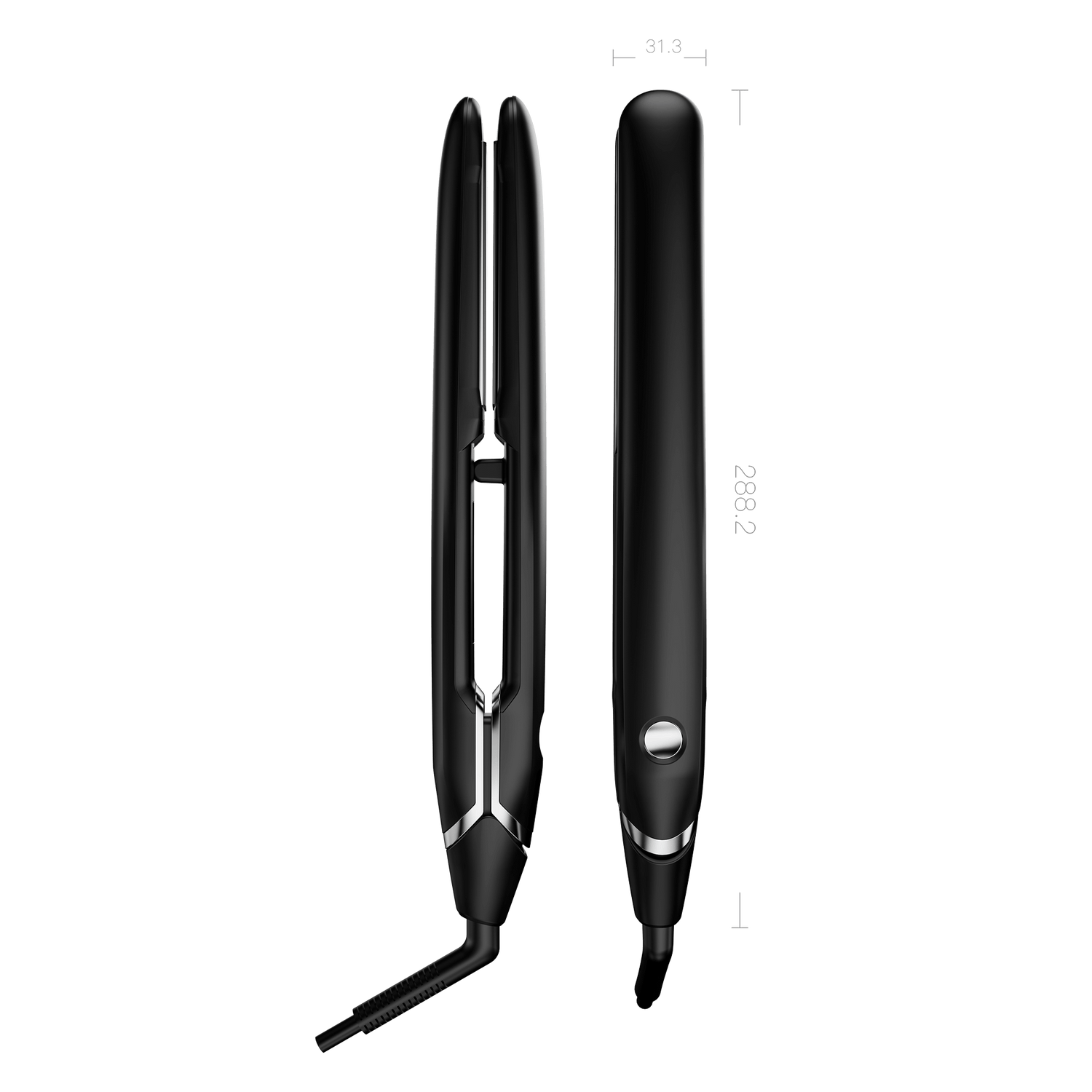

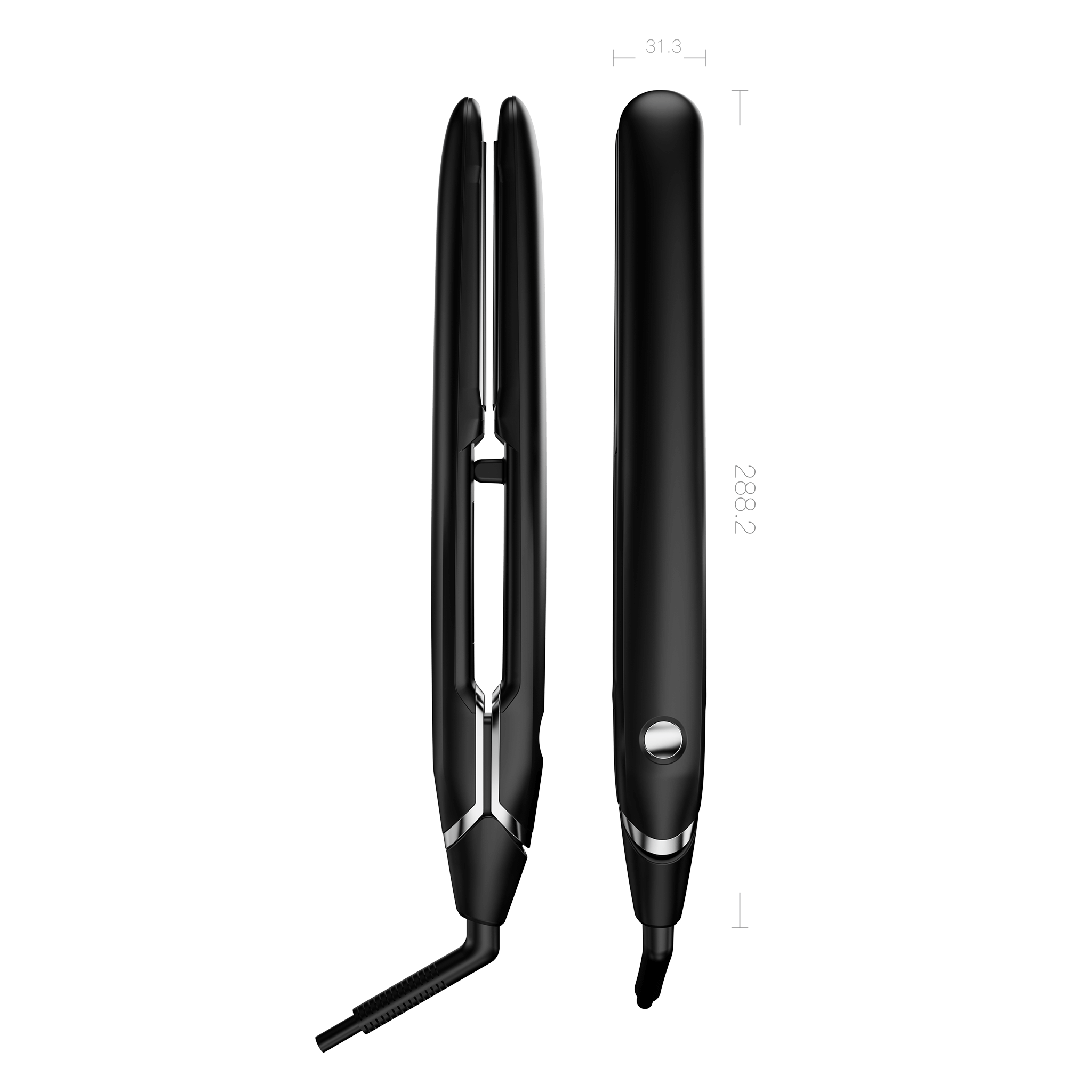

- Plates:90*24mm
- 360 swivel power cord
- Auto 60min shut off function
